TailnookFrom a layout
to the bench.

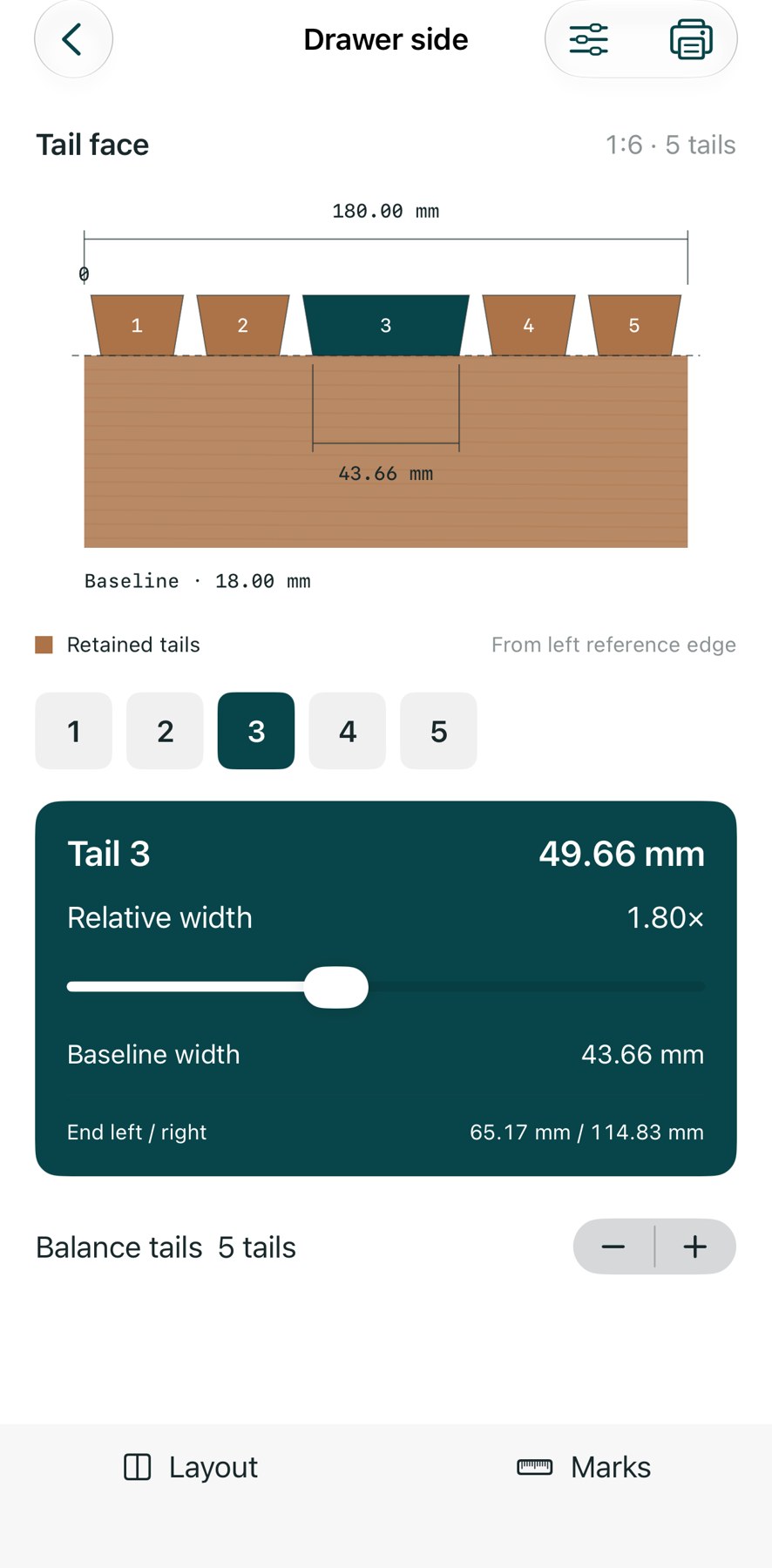

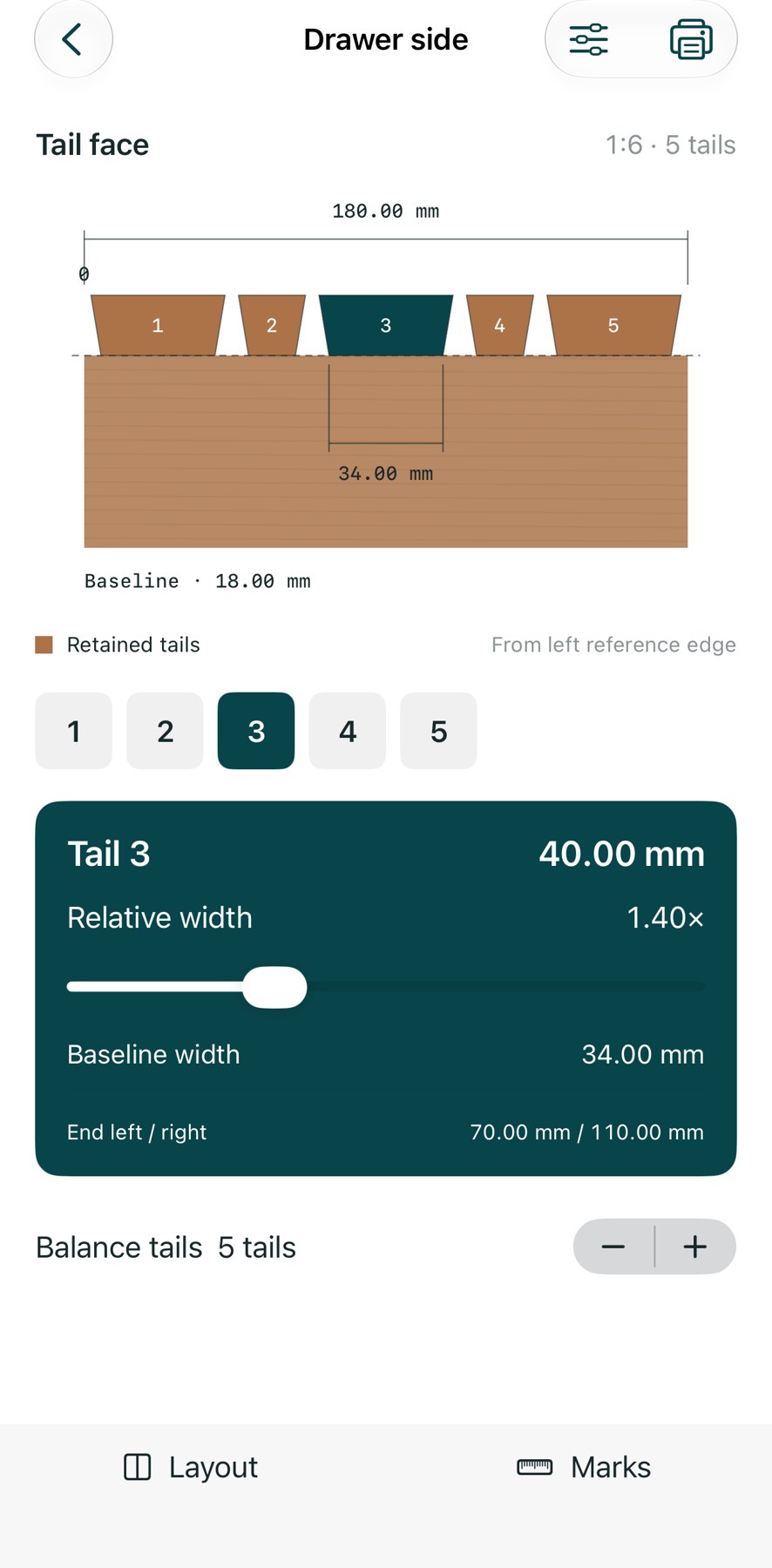

Give every through-dovetail tail its own width. Keep your layouts, inspect exact marks, and print a full-size tail-face template.
Pay once. All tools included.
iPhone & iPad · US$2.99, local prices vary
Release subject to App Store review. No subscription, ads or account.
The output is the point.

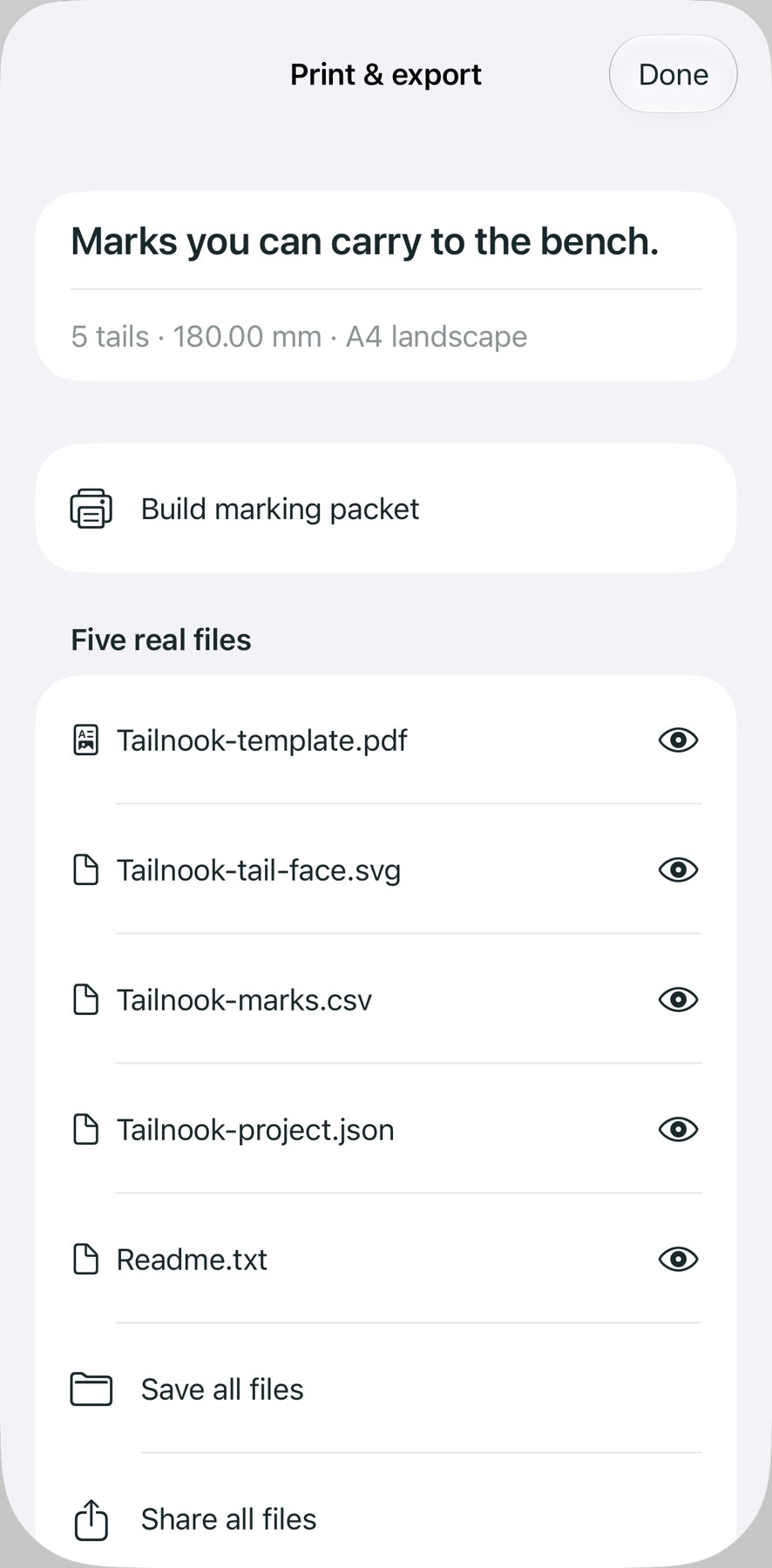

A marking packet contains a landscape A4 or US Letter PDF with 1:1 overlapping tiles, a physical-mm SVG guide, exact end/baseline CSV coordinates, a restorable JSON layout and printing instructions.
A focused hand-tool workflow.
Through-dovetail tail-face marking only: board width 40–600 mm, mating thickness 3–50 mm, 1–12 tails, narrow end pins 1–20 mm and geometric slope ratios 1:5, 1:6, 1:7, 1:8, 1:10. Canonical millimeters, optional decimal inches display. Up to 60 local layouts including recoverable Trash, with rename, search and duplication.
Mark waste between tails. Transfer pin marks from your actual cut tails. This is not a half-blind joint planner, router/CNC tool or fit/strength calculator. Verify the printed scale and actual stock; no printer-accuracy guarantee.
Support
Contact maga40@naver.com with Tailnook, app version, device and a description of the problem. Only send your layout if you choose to.
Why is my layout invalid?
The baseline width of every tail must remain at least 1 mm. Increase board width, reduce tail count or thickness, rebalance the weights, or use a gentler slope.
How do I print and join templates?

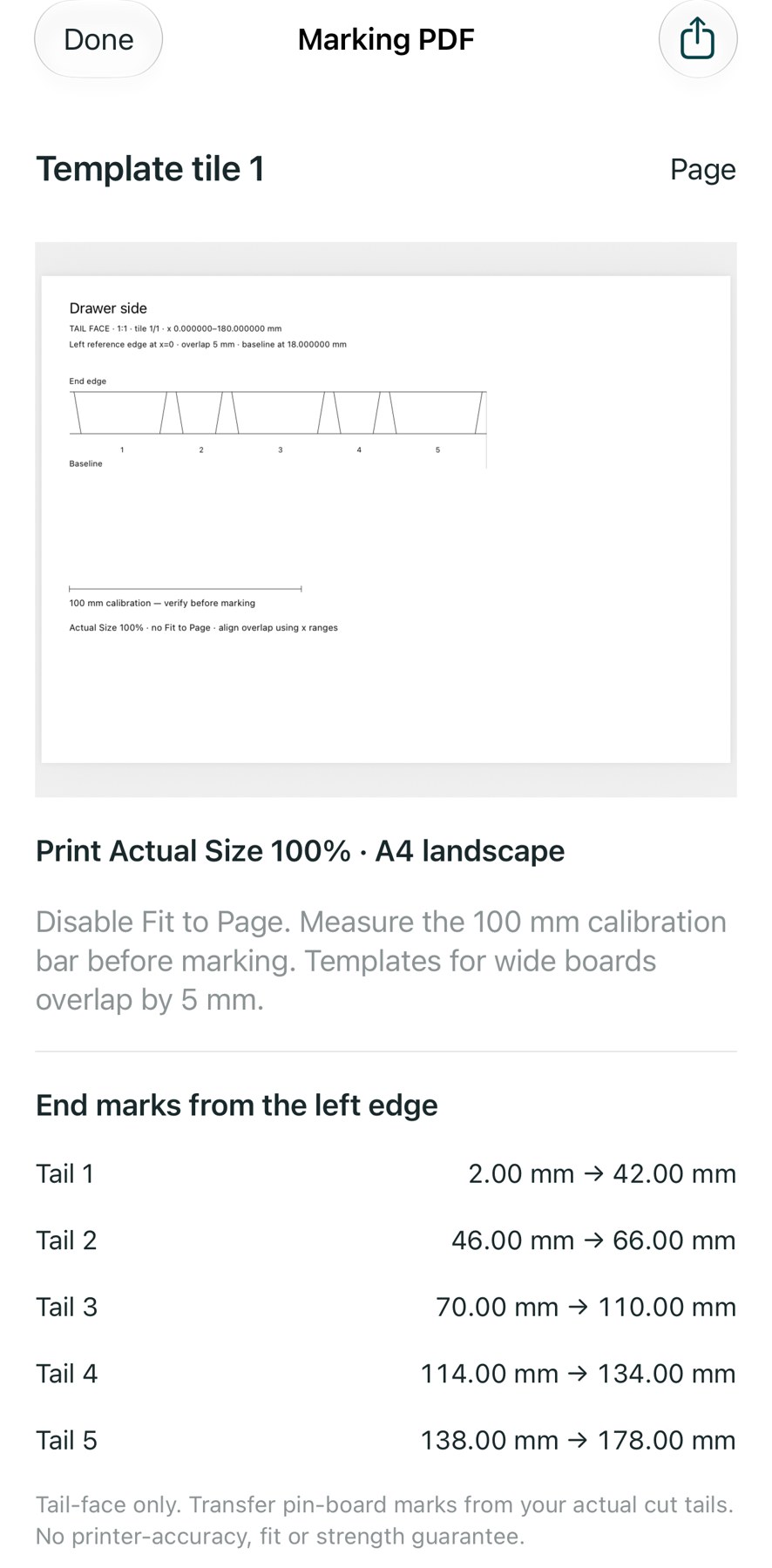

Choose A4 or US Letter in Stock & slope. Build the packet. The overview is not to scale. Print the numbered template tiles at Actual Size 100%, disable Fit and measure their 100 mm bar. Consecutive tiles overlap 5 mm; align using the stated x ranges. Printer settings are outside Tailnook.
How do I back up or restore?
Save Tailnook-project.json outside the app, then use Restore JSON in Layouts. Backups up to 512 KiB restore as a new project. Trash is recoverable until you confirm permanent deletion. Deleting the app removes its local library; there is no cloud sync.
Privacy policy
Effective 2026-10-04. Tailnook does not collect or transmit data. It includes no network requests, account, advertising, analytics or third-party SDK. Layouts and settings remain in app storage on your device. Native Files and sharing transfer only files you select to destinations you choose; those providers operate under their own policies.
Deleting a layout permanently or uninstalling removes local data. Keep exported backups separately. If you email support, Gobling Company uses your voluntarily provided message to respond; do not send private data unnecessarily. This website hosting may process ordinary HTTP technical logs, separate from the app. Questions: maga40@naver.com.
Terms of use
Tailnook provides geometric marking guides for hand-cut through-dovetail tail faces. You are responsible for checking stock, units, printing scale, marks and normal safe woodworking practice. It does not guarantee joint strength, fit, structural suitability or manufacturing/printer precision. No router/CNC code or pin-board machining template is provided.
The paid app includes its stated local tools with no subscription or in-app purchase. Apple handles purchase, pricing and refunds under its applicable terms. Use your own layouts lawfully. Except rights that applicable law does not allow to be excluded, the tool is provided as available. Support: maga40@naver.com.
